Designing a Glass Canopy: 7 things to consider

Purpose and Performance Requirements

Start by identifying what the canopy needs to achieve. Is it primarily to provide protection from rain over a front door? Or is it required to span a large outdoor area such as a courtyard or commercial terrace? The intended use will influence load requirements, structural design, glass specification and fixing approach.

Size, Shape and Positioning

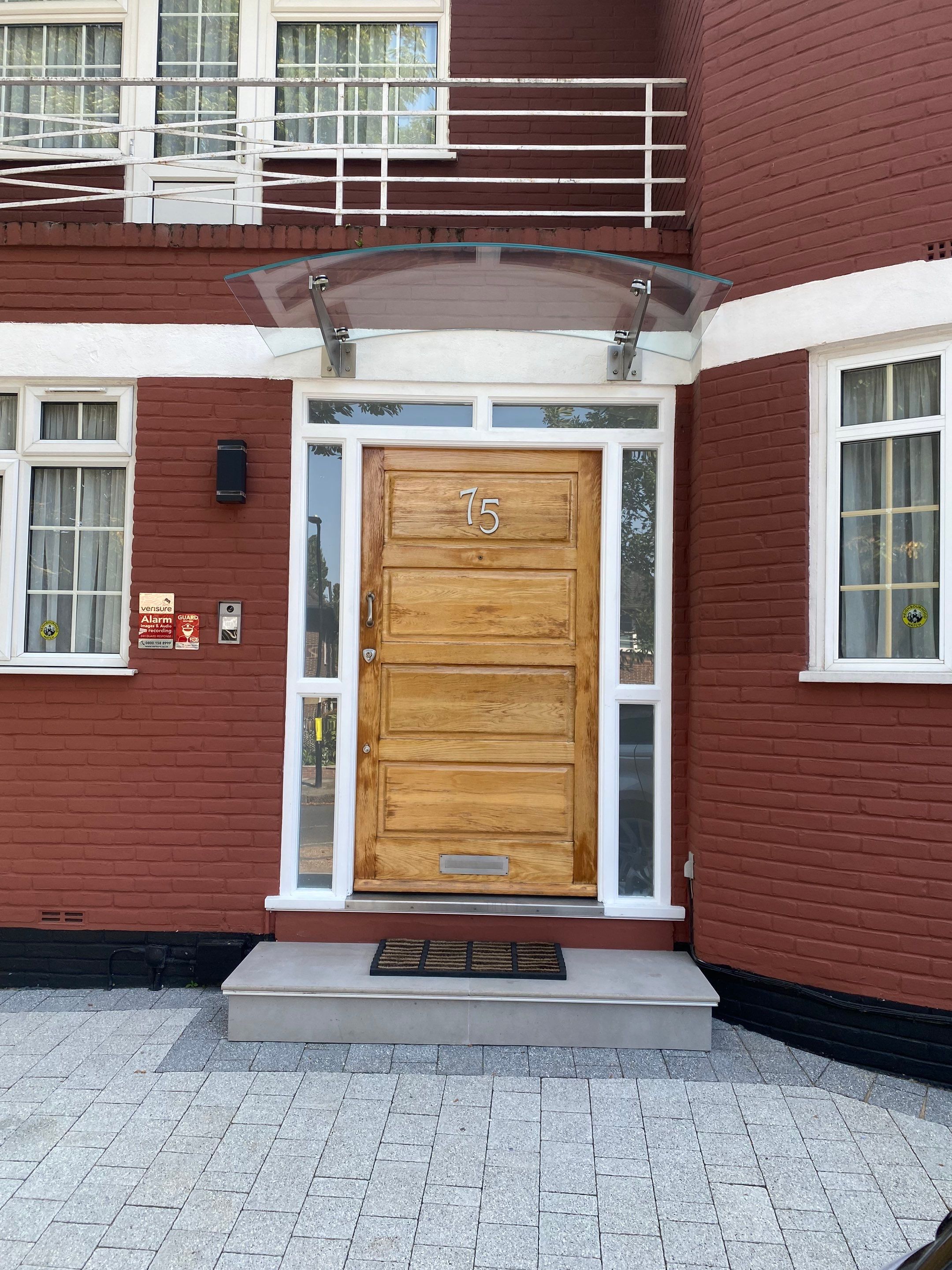

Glass canopies are often bespoke, making it possible to design for unusually shaped spaces or sized entrances. Considerations at this stage include projection from the wall, span, pitch (if any), and the height of the canopy relative to surrounding architecture. Irregular layouts may benefit from shaped or even curved glass, which Precision Glass Ltd can assist with.

Structural Support and Fixing Methods

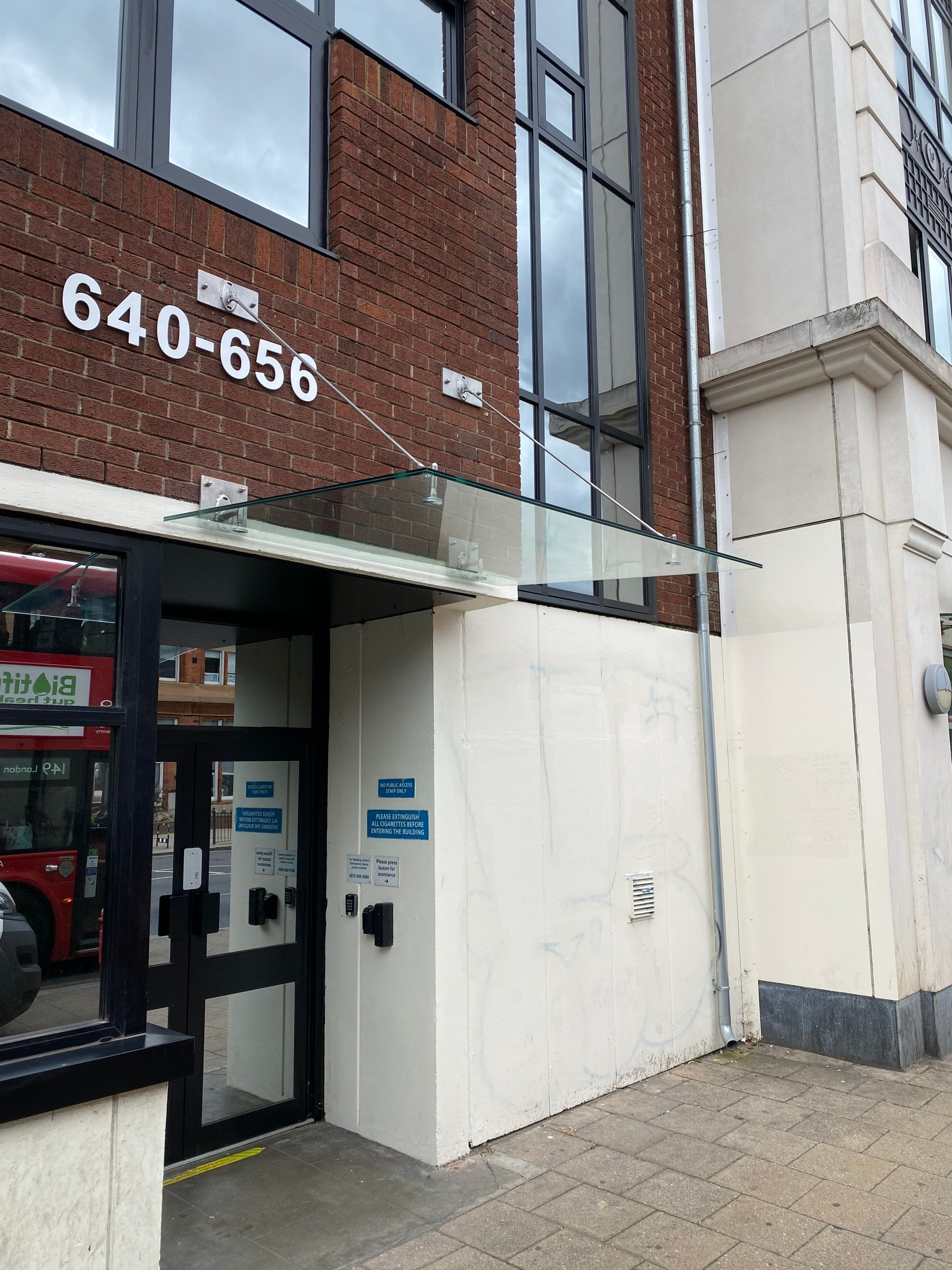

Support options range from minimal wall-mounted fixings with tension rods to more robust framed or post-supported structures. The choice depends on site conditions, scale and aesthetic requirements. Where minimalism is a priority, structural glass fixing techniques allow the canopy to appear almost floating. Whichever method is chosen, structural calculations must confirm adequacy under snow, wind and impact loads.

Glass Specification

Glass must be toughened and often laminated for safety and durability. Laminated panels ensure that if shattered, the panel remains intact and safe. For larger spans or overhead applications, triple-laminated panels or heat-soaked glass may be specified. Optional coatings, fritting and tints can reduce glare, improve solar control or add a design feature.

Drainage and Water Management

Effective water management is essential on any canopy. Rain runoff should be directed away from the building entrance and prevented from dripping unpredictably. Drainage can be handled by a slight pitch with a discreet channel at one edge or by integrating guttering systems into the design. Frameless canopies, in particular, require careful coordination of drainage detailing.

Integration with Surrounding Building Fabric

The canopy must not compromise existing building fabric. Flashing details, fixings and movement joints need careful design, often involving collaboration with other trades on site. For example, coordinating with façade contractors to ensure airtight interfaces can significantly reduce the chance of future water ingress.

Maintenance and Long-Term Durability

Access for cleaning and maintenance should be considered from the outset, particularly for high or hard-to-reach installations. Glass canopies exposed to trees or pollutants may benefit from low-maintenance coatings that reduce dirt accumulation or staining.

Conclusion

As simple and elegant as a glass canopy might appear, its design involves an interplay of structural, aesthetic and practical issues. Decisions made during early design stages dictate not only the visual impact of the canopy but also its performance over time. At Precision Glass Ltd, we support construction professionals in delivering bespoke, technically proficient solutions tailored to each project.

Looking to incorporate a glass canopy into your next project? We’re happy to assist with advice, bespoke design drawings and the full supply and installation process.
